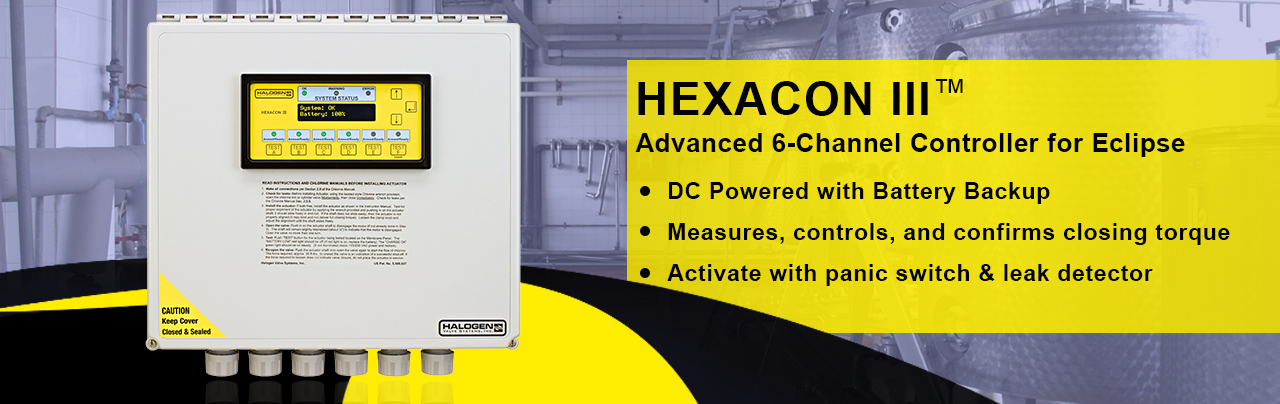

HEXACON III™ CONTROLLER
Emergency Valve Shutoff System
Hexacon III General Description
The Hexacon III controller allows for the control and operation of up to six Eclipse valve actuators. In the event of an emergency, a signal from a leak detector, panic shutoff switch or any other external contact closure will begin the rapid shut off process. The system closes a typical valve opened one full turn in about one second, substantially limiting the size of a chemical release. The controller’s DC power system provides up to 3 days of continuous battery backup to keep your feed system protected even in the event of an AC power interruption.
Features:
- Electronically Closes Valve In Less Than One Second!
- OLED System Information Display And Keypad
- Extensive Onboard Fault/Error Diagnostics
- Output Relays and RS232 Options Allow Remote Monitoring
- Battery Operated with Backup Power Protection
- Separate Emergency and Test Close Torque Values as Recommended by the Chlorine Institute
- Allows Manual Operation of Valve with Standard Wrench While Actuator Installed
- Over-Torque Protection
- NEMA 4X Rated Controller
- 3 Year Warranty
Hexacon III Technical Specs
| Controller Model : | 6601.03, 6602.03, 6603.03, 6604.03, 6605.03, 6606.03 |
| Channels : | Up to 6 Actuators |
| Enclosure Dimensions : | 14.5 x 16.5 x 8.3 inches (356 x 420 x 210 mm) |
| Enclosure Weight : | 18 lbs (8 kgs) |
| Battery Weight : | 7 lbs (3.2 kgs) |
| Enclosure Rating : | NEMA 4X / IP66 |
| Temperature Range : | -10 C to 50 C |
| Display : | 2 line 40 charachter backlit OLED |
| Power Requirement : | 120 - 240 VAC |
| Power Use : | 100 watts |
| Current : | 0.9A @ 120 VAC |
| Relay Contact Rating : | 0.2A @ 24 VDC |
| Charger : | Constant voltage trickle charge |
| Battery Backup : | 3 days, 8.5 amp hour |
| Emergency Stop Button : | Normally Open contact (Optional N.C. Contact) |
| Warranty : | 3 Years |
| Optional Relay Contacts: | (3) per relay card, 5A @ 120 VAC ea. |
| Optional SCADA Output : | RS-232 output of 9 system diagnostics |
| Optional Second Battery : | 3 days, 8.5 amp hour (closes 2 valves at a time) |
| Accessories : | Actuator storage rack (1 per actuator) |
Hexacon III Options
- RS232 Serial Port Output to SCADA
- Fault Error Output Relay
- DT-DP Relay (Latching available)
- Annual Preventative Maintenance Program
Hexacon III Brochures
The Hexacon III controller allows operators to remotely close up to six chlorine or sulfur dioxide valves in an emergency situation.
Bulletin 902
The Second Battery Option for the Hexacon III™ controller decreases the total time required for shutoff, increases battery backup time and adds redundancy for safety.
Bulletin 902.A
The optional Relay Interface Module (RIM) for the Hexacon III Controller provides three dry contact output relays rated 5A @ 250VAC.
Bulletin 902.B
